Cellular Automata From First Principles 13: Build a Predator-Prey Ecosystem

A forest fire mostly transforms cells in place.

Rule 184 moves occupancy in one constrained direction.

An ecosystem adds a harder problem:

organisms move
organisms reproduce
predators consume prey
several organisms may want one destination

Now local intentions can conflict.

That means update semantics become part of the model.

Separate visible kind from internal state

Start with:

0 = empty
1 = prey
2 = predator

import numpy as np

EMPTY = 0
PREY = 1
PREDATOR = 2

kind = np.zeros(
    (100, 100),
    dtype=np.uint8,
)

A richer model may need predator energy, age or reproduction state.

Do not overload one integer with every concept.

Use additional fields:

energy = np.zeros(
    kind.shape,
    dtype=np.float32,
)

Now a cell’s state is layered:

visible occupancy
+
internal organism state

Why naive in-place movement is dangerous

Suppose two predators both target the same prey.

If we mutate the grid immediately, whichever predator happens to be processed first wins.

Then Python loop order has become part of the ecology.

Sometimes sequential updates are a deliberate model choice.

But if they are not deliberate, they are a hidden source of causality.

A cleaner synchronous architecture is:

current world
      ↓
propose actions
      ↓
resolve conflicting targets
      ↓
apply accepted actions
      ↓
next world

That is very close to transaction processing.

Make conflict resolution explicit

A prey movement proposal might look like:

(source, target, PREY)

Group proposals by target:

from collections import defaultdict


def resolve_targets(
    proposals,
    rng,
):
    by_target = defaultdict(list)

    for proposal in proposals:
        by_target[
            proposal[1]
        ].append(proposal)

    accepted = []

    for target, choices in by_target.items():
        choice = choices[
            rng.integers(len(choices))
        ]

        accepted.append(choice)

    return accepted

Now the collision policy is part of the experiment.

We could instead choose:

first proposal
highest-energy organism
random proposal
no proposal
priority by species

Those are different models.

Give predators persistent state

A predator can lose energy every step and gain energy when it eats.

MOVE_COST = 1.0
FOOD_ENERGY = 4.0

Conceptually:

choose local action
      ↓
pay movement cost
      ↓
gain food energy if predation succeeds
      ↓
die if energy <= 0

Now the future depends on local history.

State has become memory.

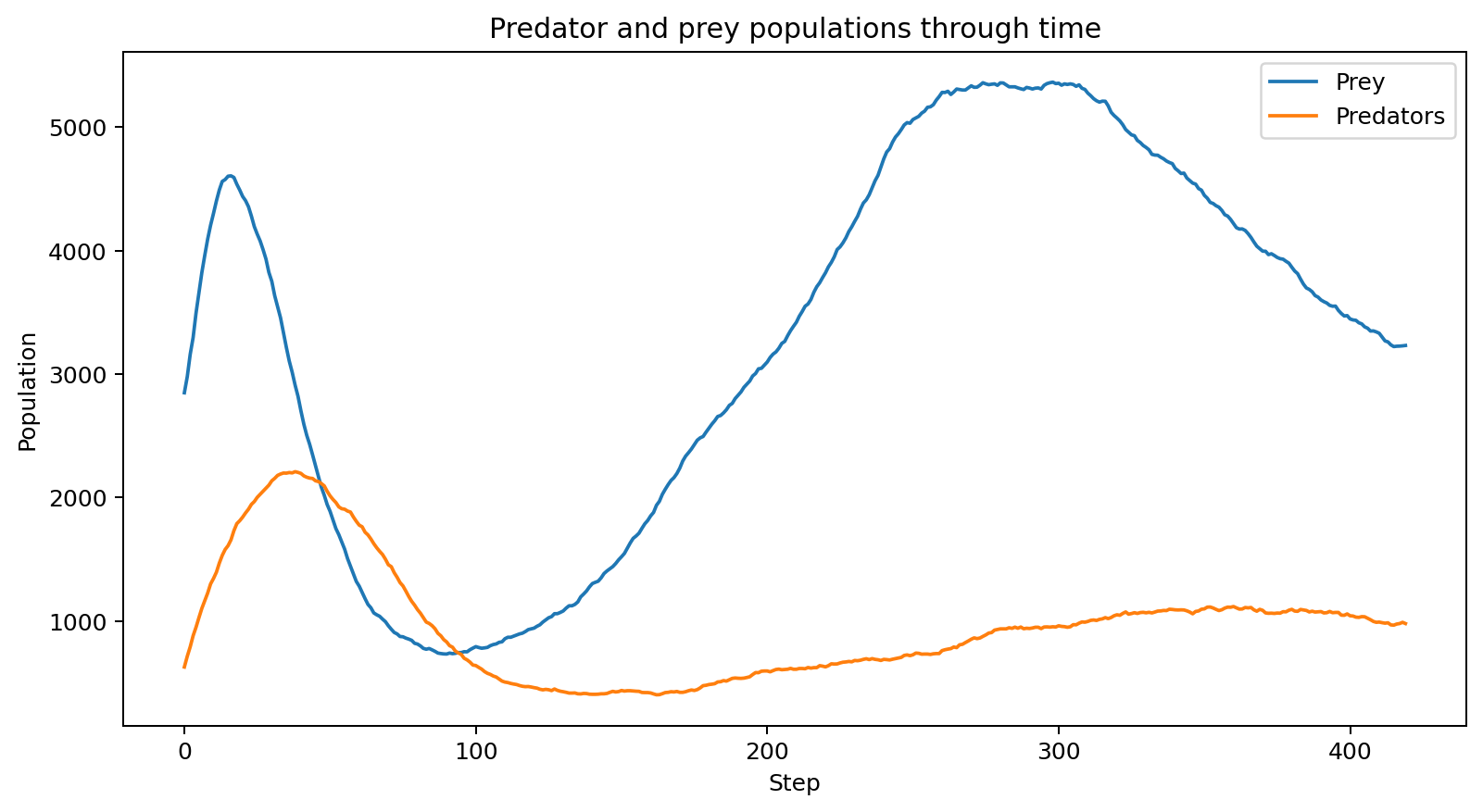

Track the world and the populations separately

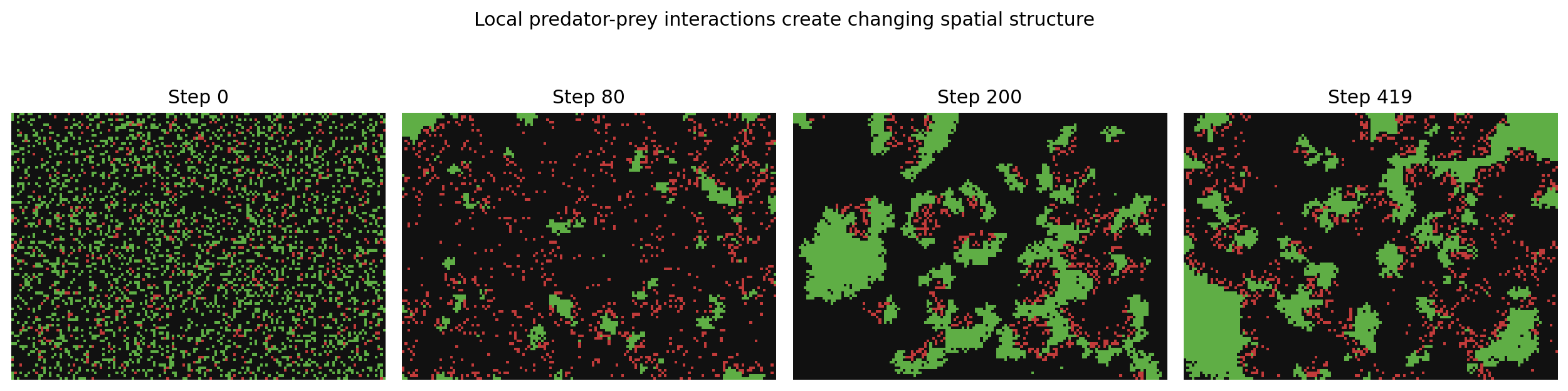

A spatial snapshot tells us where interactions occur.

A population curve tells us what happens globally.

Those are complementary observables.

The figure generator uses a deliberately compact local predator-prey CA to visualize the population-level phenomenon.

The chapter’s propose/resolve architecture is the richer implementation pattern to use when explicit movement and target conflicts matter.

That distinction is useful:

figure model:
demonstrate spatial population dynamics

engineering model:
make agent intentions and conflicts inspectable

Oscillation is not guaranteed

It is tempting to draw this loop:

prey increase
      ↓
predators increase
      ↓
prey decrease
      ↓
predators starve
      ↓
prey recover

That mechanism can produce oscillatory population dynamics.

But not every parameter choice will.

Possible outcomes include:

prey extinction
predator extinction
both extinction
persistent coexistence
oscillation
spatial patchiness

So the existence and character of oscillation should be measured rather than assumed.

Treat hidden choices as parameters

Important choices include:

neighborhood shape
movement policy
collision resolution
predation probability
reproduction probability
energy gain
energy cost
boundary conditions
update synchrony

If those remain buried inside code, two ecosystem runs are difficult to compare meaningfully.

Make them explicit configuration.

Keep causality inspectable

When an organism disappears, we should know why.

A lightweight event record can help:

from dataclasses import dataclass


@dataclass
class Event:
    kind: str
    source: tuple[int, int] | None
    target: tuple[int, int] | None

Possible event kinds:

move
eat
birth
starve
collision_lost

Now debugging does not require reconstructing every causal decision from snapshots after the fact.

This becomes increasingly important as cellular systems start to resemble local agents.

One idea to keep

The difficult part of multi-agent cellular worlds is not merely writing more transition rules.

It is defining what simultaneous local action means.

Once several cells compete for shared resources or destinations, conflict resolution becomes part of the model.

In the next chapter we will use local updates for a different purpose: not to simulate an ongoing world, but to construct an organic cave map and then validate whether the result is actually usable.
