Color wars: Cellular Automata fight until one domiates
Page content
Summary
This post is about color wars: a grid containing dynamic automata at war until one dominates.
Implementation
The implementation consists of two core components: the Grid and the CellularAutomaton.
1. CellularAutomaton Class
The CellularAutomaton class represents individual entities in the grid. Each automaton has:
- Attributes: ID, strength, age, position.
- Behavior: Updates itself by aging, reproducing, or dying based on simple rules.
2. Grid Class
The Grid manages a collection of automata. It:
- Tracks their positions in a 2D grid.
- Updates automata states in discrete time steps.
- Calculates neighbors for reproduction or interaction.
Key Features
- Dynamic Entities: Automata can reproduce, age, and die.
- Interactive Simulation: Add new automata dynamically with mouse clicks.
- Visualization: Uses Pygame to display the evolving grid in real-time.

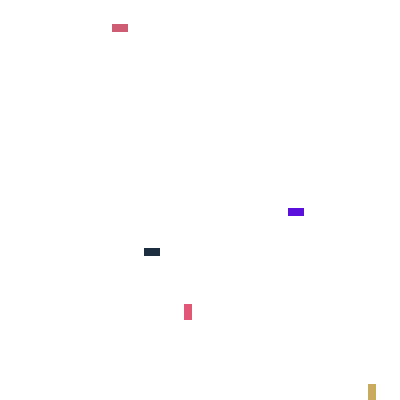

Here’s the grid in action, where each automaton reproduces, interacts, and evolves over time:
Practical Applications
Here are some applications where this implementation could be adapted:
1. Ecosystem Simulation
Use the grid to model predator-prey relationships, plant growth, or other ecological interactions. Each automaton can represent a species with unique behaviors.
2. Urban Growth Modeling
Simulate city expansion by assigning different automata to represent buildings, roads, and green spaces. Rules can dictate urbanization patterns.
3. Disease Spread Modeling
Model how infectious diseases spread in a population. Each automaton could represent an individual, with rules defining infection, recovery, or death.
4. Traffic Flow Simulation
Adapt the grid to simulate traffic patterns. Automata can represent vehicles with movement rules influenced by neighboring cells.
Interactive Features
- Click on the grid to dynamically add new automata.
- Adjust rules to experiment with different behaviors and outcomes.
Color wars the Cellular Automata war
import random
import pygame
import numpy as np
from PIL import Image
# Cellular Automaton Class
class CellularAutomaton:
def __init__(self, id, strength, position, max_up, max_down):
self.id = id
self.strength = strength
self.age = 0
self.position = position
self.max_up_mutation = max_up
self.max_down_mutation = max_down
def update(self, neighbors):
self.age += 1
self.strength -= 1
if self.strength <= 0:
return None
empty_neighbors = [pos for pos in neighbors if pos["cell"] is None]
if empty_neighbors:
chosen = random.choice(empty_neighbors)
new_strength = self.strength + random.randint(
-self.max_down_mutation, self.max_up_mutation
)
new_strength = max(1, new_strength)
return CellularAutomaton(
id=self.id,
strength=new_strength,
position=chosen["position"],
max_up=self.max_up_mutation,
max_down=self.max_down_mutation,
)
return None
# Grid Class
class Grid:
def __init__(self, width, height, num_populations, starting_strength, max_up, max_down):
self.width = width
self.height = height
self.grid = [[None for _ in range(width)] for _ in range(height)]
self.automata = []
self.colors = [
(random.randint(0, 255), random.randint(0, 255), random.randint(0, 255))
for _ in range(num_populations)
]
for i in range(num_populations):
x = random.randint(0, width - 1)
y = random.randint(0, height - 1)
automaton = CellularAutomaton(
id=i,
strength=starting_strength,
position=(y, x),
max_up=max_up,
max_down=max_down,
)
self.automata.append(automaton)
self.grid[y][x] = automaton
def get_neighbors(self, y, x):
directions = [(-1, 0), (1, 0), (0, -1), (0, 1)]
neighbors = []
for dy, dx in directions:
ny, nx = y + dy, x + dx
if 0 <= ny < self.height and 0 <= nx < self.width:
neighbors.append({"position": (ny, nx), "cell": self.grid[ny][nx]})
return neighbors
def update(self):
new_automata = []
for automaton in self.automata:
y, x = automaton.position
neighbors = self.get_neighbors(y, x)
new_automaton = automaton.update(neighbors)
if automaton.strength > 0:
new_automata.append(automaton)
else:
self.grid[y][x] = None
if new_automaton:
ny, nx = new_automaton.position
self.grid[ny][nx] = new_automaton
new_automata.append(new_automaton)
self.automata = new_automata
# Simulation Configuration
config = {
"width": 50,
"height": 50,
"numPop": 5,
"startingStrength": 15,
"maxUpMutation": 3,
"maxDownMutation": 3,
"cellSize": 8,
"fps": 10,
"maxDuration": 60, # Maximum duration in seconds
}
# Pygame Setup
pygame.init()
cell_size = config["cellSize"]
display_width = config["width"] * cell_size
display_height = config["height"] * cell_size
systemDisplay = pygame.display.set_mode((display_width, display_height))
pygame.display.set_caption("Cellular Automata with GIF Export")
clock = pygame.time.Clock()
# Create Grid
grid = Grid(
width=config["width"],
height=config["height"],
num_populations=config["numPop"],
starting_strength=config["startingStrength"],
max_up=config["maxUpMutation"],
max_down=config["maxDownMutation"],
)
# Frame Capturing Setup
frames = []
frame_count = 0
max_frames = config["fps"] * config["maxDuration"]
# Main Simulation Loop
running = True
while running:
for event in pygame.event.get():
if event.type == pygame.QUIT:
running = False
elif event.type == pygame.MOUSEBUTTONDOWN:
pos = pygame.mouse.get_pos()
grid_y, grid_x = pos[1] // cell_size, pos[0] // cell_size
if grid.grid[grid_y][grid_x] is None:
new_automaton = CellularAutomaton(
id=len(grid.colors),
strength=config["startingStrength"],
position=(grid_y, grid_x),
max_up=config["maxUpMutation"],
max_down=config["maxDownMutation"],
)
grid.automata.append(new_automaton)
grid.grid[grid_y][grid_x] = new_automaton
grid.colors.append(
(random.randint(0, 255), random.randint(0, 255), random.randint(0, 255))
)
# Update grid and render
grid.update()
systemDisplay.fill((255, 255, 255))
for automaton in grid.automata:
y, x = automaton.position
pygame.draw.rect(
systemDisplay,
grid.colors[automaton.id],
pygame.Rect(x * cell_size, y * cell_size, cell_size, cell_size),
)
pygame.display.update()
# Capture frame
frame = pygame.surfarray.array3d(systemDisplay)
frames.append(Image.fromarray(np.rot90(frame)))
frame_count += 1
# Stop capturing after max_frames
if frame_count >= max_frames:
running = False
clock.tick(config["fps"])
pygame.quit()
# Save GIF
gif_path = "color_wars.gif"
frames[0].save(
gif_path,
save_all=True,
append_images=frames[1:],
duration=1000 // config["fps"],
loop=0,
)
print(f"Simulation saved as {gif_path}")
Code Examples
Check out the ca notebooks for the code used in this post and additional examples.
